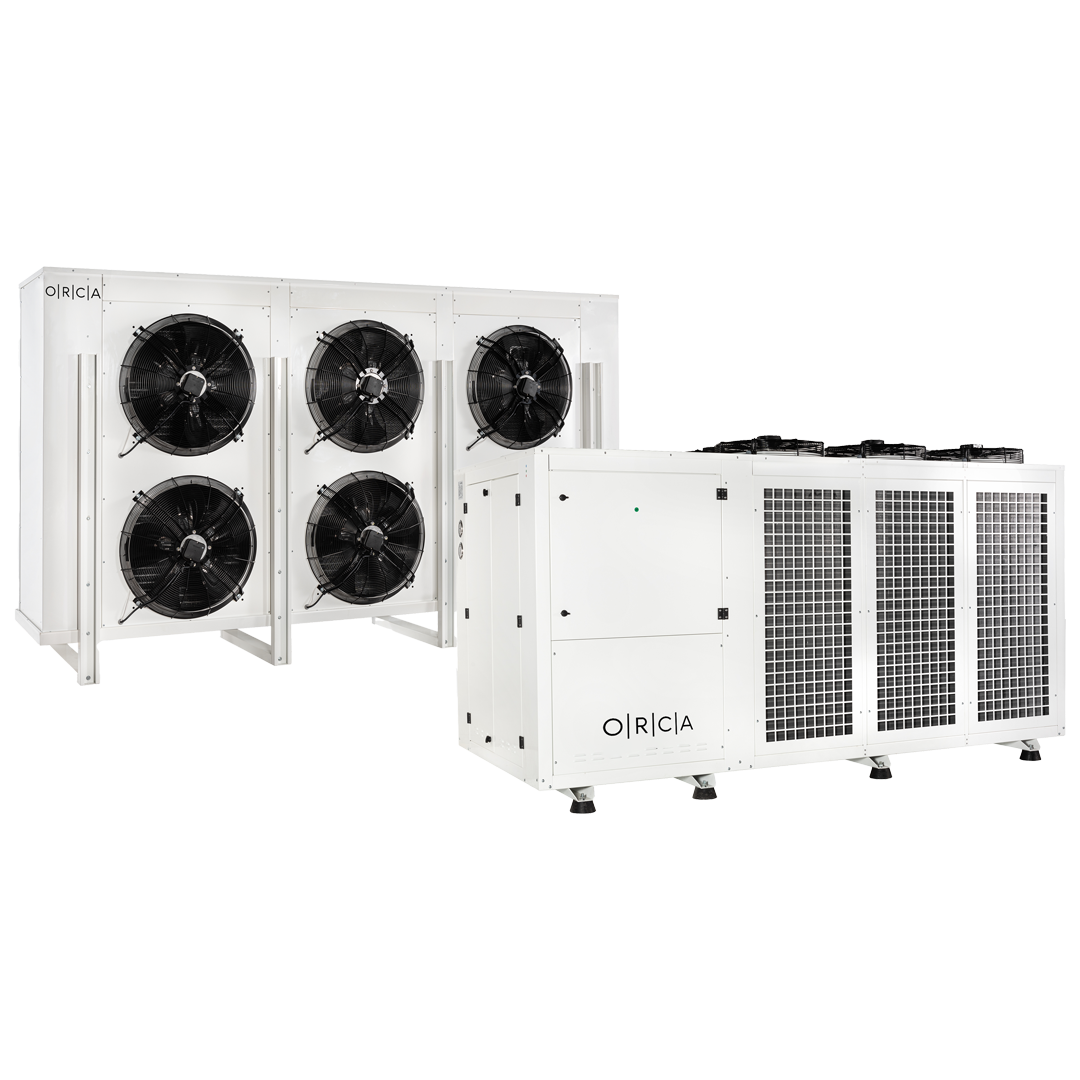

Blast Freezer

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

In order to preserve the products for long term period, they should be frost until the core temperature reaches -18°C in point of the food safety.

Environmentally Friendly

Certified Products

Energy Saving

Orca Catalogues

General Specifications

Blast Freezer ;

  • It is manufactured with semi-hermetic or screw type compressor and air cooled condenser.
  • It has remote control panel.
  • It has robust housing according to ambient conditions.
  • It is delivered with positive pressure by pumping nitrogen to outside unit.
  • All equipments are delivered together with control instruments as being ready to assembly
  • It has electrostatic painted galvanized steel cabinet.
  • It produces with high efficiency evaporator design according to unit capacity.
  • It can be manufactured with ceiling type or ground type evaporator design.

Technical Specifications

Blast Freezer ;

Equipments:

* It can differ according to unit model

  • Phase protection relay(High/Low)
  • Thermal / Magnetic circuit breaker
  • Contactor (in three-phase models)
  • Crankcase heater
  • Copper tube aluminium fin condenser
  • Liquid receiver
  • Dryer
  • Sight glass
  • Liquid flow control solenoid
  • Service / Maintenance valve (on the liquid line)
  • Pressure switch(Low/ High)
  • Gas charge valve
  • Check valve
  • Oil filter
  • Oil separator
  • Oil tank
  • Oil regulator
  • Sound Insulation
  • Electronic fan speed controller (in frost series)

Blast Freezer Units ;

Semi Hermetic R404A

(Evaporating Temperature -40 °C, Condensation Temperature +40 °C)

<tr”>OR/FS-675 SZ18.60018,4913,791,35S6H-20.2Y 3.000ORBF 63.22.12ORBF-T 63.23.12 <tr “>OR/FS-785 SZ21.30021,2615,851,34S6G-25.2Y3.500ORBF 50.43.12ORBF-T 63.32.12 <tr”>OR/FS-1620 SZ22.20026,0219,401,14HGZX 7/1620-43.500ORBF 50.43.12ORBF-T 63.32.12

TYPE WATT

Q

HP

P

KW

TP

C.O.P COMP. TYPE CAPACITY

kg/24h

FLOOR TYPE EVAP. CEILING TYPE EVAP.
OR/FS-450 SZ 4.960 5,31 3,96 1,25 S4T-5.2Y BITZER 750 ORBF 50.21.12 ORBF-T 63.12.12
OR/FS-500 SZ 7.060 7,58 5,65 1,25 S4N-8.2Y BITZER 1.000 ORBF 50.22.12 ORBF-T 63.12.12
OR/FS-550 SZ 11.330 11,39 8,49 1,33 S4G-12.2Y 1.500 ORBF 50.23.12 ORBF-T 63.21.12
OR/FS-665 SZ 16.100 15,96 11,90 1,35 S6J-16.2Y BITZER 2.500 ORBF 63.22.12 ORBF-T 63.23.12
OR/FS-899 S 25.300 25,43 18,96 1,33 S6F-30.2Y BITZER 4.000 ORBF 63.41.12 ORBF-T 63.33.12
OR/FS-1860 SZ 25.500 29,77 22,20 1,15 HGZX 7/1860-4 4.000 ORBF 63.41.12  ORBF-T 63.33.12
OR/FS-2110 SZ 29.000 33,93 25,30 1,15 HGZX 7/2110-4 5.500 ORBF 63.41.12 O6 ORBF-T 63.33.12
OR/FS-550 SZ 13.280 13,53 10,09 1,32 2S-H1500 DORIN 1.500 ORBF 63.21.12 ORBF-T 63.22.12
OR/FS-675 SZ 18.100 18,30 13,65 1,33 2S-H2000 DORIN 3.000 ORBF 63.22.12 ORBF-T 63.23.12
OR/FS-785 SZ 20.110 20,75 15,47 1,30 2S-H2500 DORIN 3.500 ORBF 50.43.12 ORBF-T 63.32.12
OR/FS-899 SZ 23.930 24,63 18,37 1,30 2S-H3000 DORIN 4.000 ORBF 63.41.12 ORBF-T 63.33.12
OR/FS-2110 SZ 28.000 29,33 21,87 1,28 2S-H4000 DORIN 5.500 ORBF 63.41.12 O6 ORBF-T 63.33.12
OR/FS-5000 SZ 31.290 32,94 24,56 1,27 2S-H5000 DORIN 6.000 ORBF 63.41.12 O6 ORBF-T 63.33.12
OR/FS-6000 SZ 37.290 39,25 29,27 1,27 2S-H6000 DORIN 7.000 ORBF 63.42.12 ORBF-T 63.43.12
OR/FS-6500 SZ 40.950 43,11 32,15 1,27 2S-H6500 DORIN 7.500 ORBF 63.42.12 ORBF-T 63.43.12
