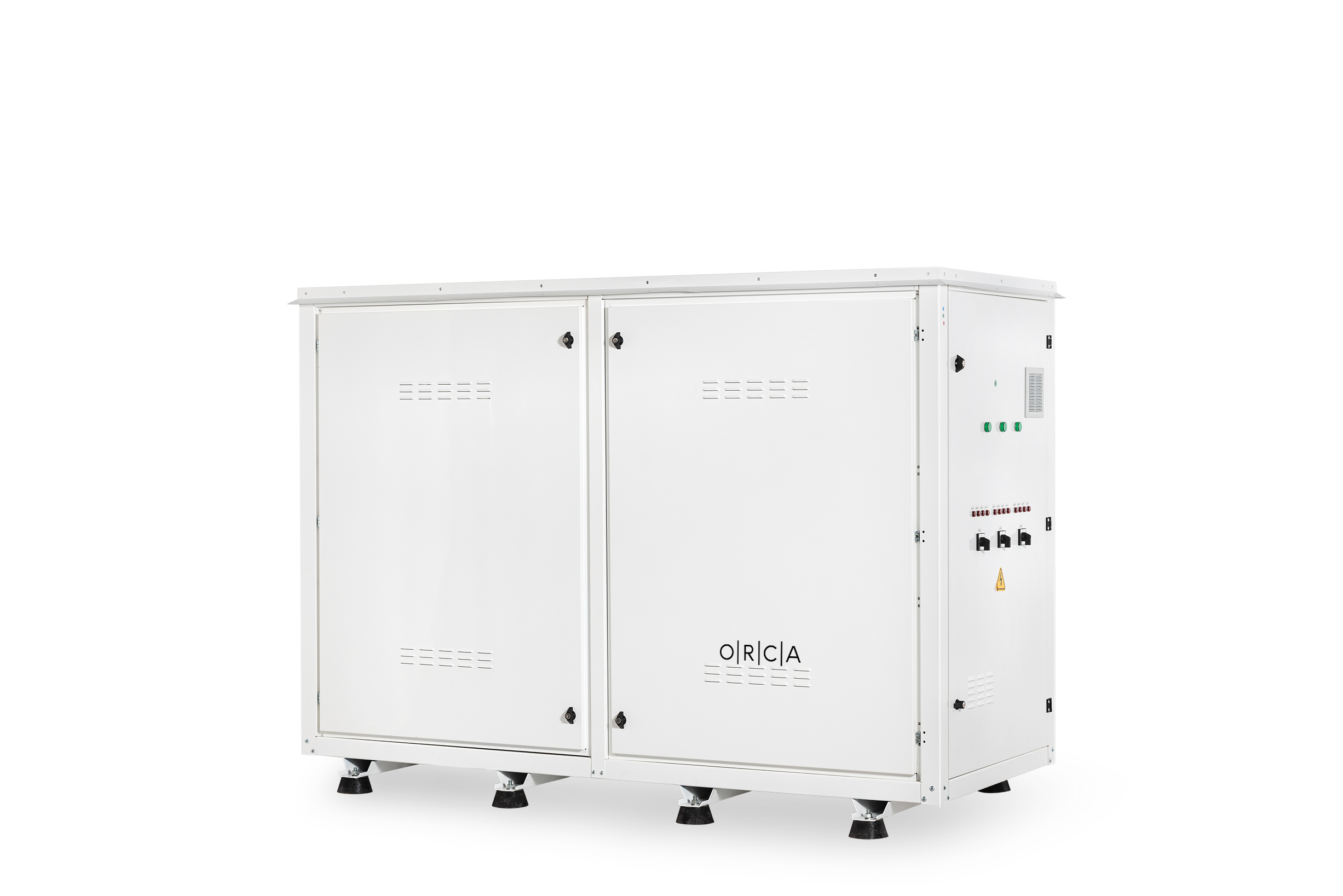

Monoblock Refrigeration Units

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

Produced in conformity with cold and freezer room conditions.It conforms to European Union norms and manufactured with CE marking.

Environmentally Friendly

Certified Products

Energy Saving

Orca Catalogues

General Specifications

Monoblock Refrigeration Units ;

  • It has hermetic compressor and air cooled condenser
  • Device is compact type and delivered as all control equipments assembled
  • It has hot gas defrost system
  • It has electrostatic painted galvanized steel cabinet.

Technical Specifications

Monoblock Refrigeration Units ;

Monoblock Cooling UnitsEquipments:

* It can differ according to unit model

  • Phase protection relay(High/Low)
  • Thermal / Magnetic circuit breaker
  • Contactor (in three-phase models)
  • Copper tube aluminium fin condenser
  • Liquid receiver
  • Dryer
  • Sight glass
  • Liquid flow control solenoid
  • Service / Maintenance valve (on the liquid line)
  • Pressure switch (Low / High)
  • Gas charge valve
  • Check valve
  • Electronic fan speed controller (in frost series)



Monoblock Refrigeration Units Cold Series ;

Hermetic R404A

(Evaporating Temperature -5 °C, Condensation Temperature +40 °C)

TYPE WATT

Q

HP

P

KW

TP

C.O.P COMP. TYPE

V

POWER SUPPLY DOCUMENTS
OCMV/0140-HZ 1.706 0,75 0,74 2,29 CAJ 9480 Z 09/14 220 V/50 Hz Orca Catalogues
OCMV/0205-HZ 2.560 1,00+ 1,05 2,43 CAJ 9513 Z 15/24 220 V/50 Hz Orca Catalogues
OCMV/0245-HZ 3.015 1,20 1,20 2,51 CAJ 4517 Z 25/30 220 V/50 Hz Orca Catalogues
OCMV/0325-HZ 3.984 1,50 1,62 2,45 CAJ 4519 Z 31/41 220 V/50 Hz Orca Catalogues
OCMV/0385-HZ 4.353 2,00 1,86 2,34 TFH 4524 Z 42/46 380 V/50 Hz Orca Catalogues
OCMV/0500-HZ 5.574 2,50 2,32 2,40 TFH 4531 Z 47,61 380 V/50 Hz Orca Catalogues

Monoblock Refrigeration Units Frost Series ;

Hermetic R404A

(Evaporating Temperature -25 °C, Condensation Temperature +40 °C)

TYPE WATT

Q

HP

P

KW

TP

C.O.P COMP. TYPE

V

POWER SUPPLY DOCUMENTS
OFMV/0145-HZ 1.439 1,50 1,10 1,30 CAJ 2464 Z 10/14 220 V/50 Hz Orca Catalogues
OFMV/0170-HZ 2.111 2,00 1,58 1,33 TFH 2480 Z 15/24 380 V/50 Hz Orca Catalogues
OFMV/0270-HZ 2.887 3,00 1,96 1,46 TFH 2511 Z 25/40 380 V/50 Hz Orca Catalogues
OFMV/0360-HZ 4.218 5,00 2,86 1,48 TAG 2516 Z 41/62 380 V/50 Hz Orca Catalogues
