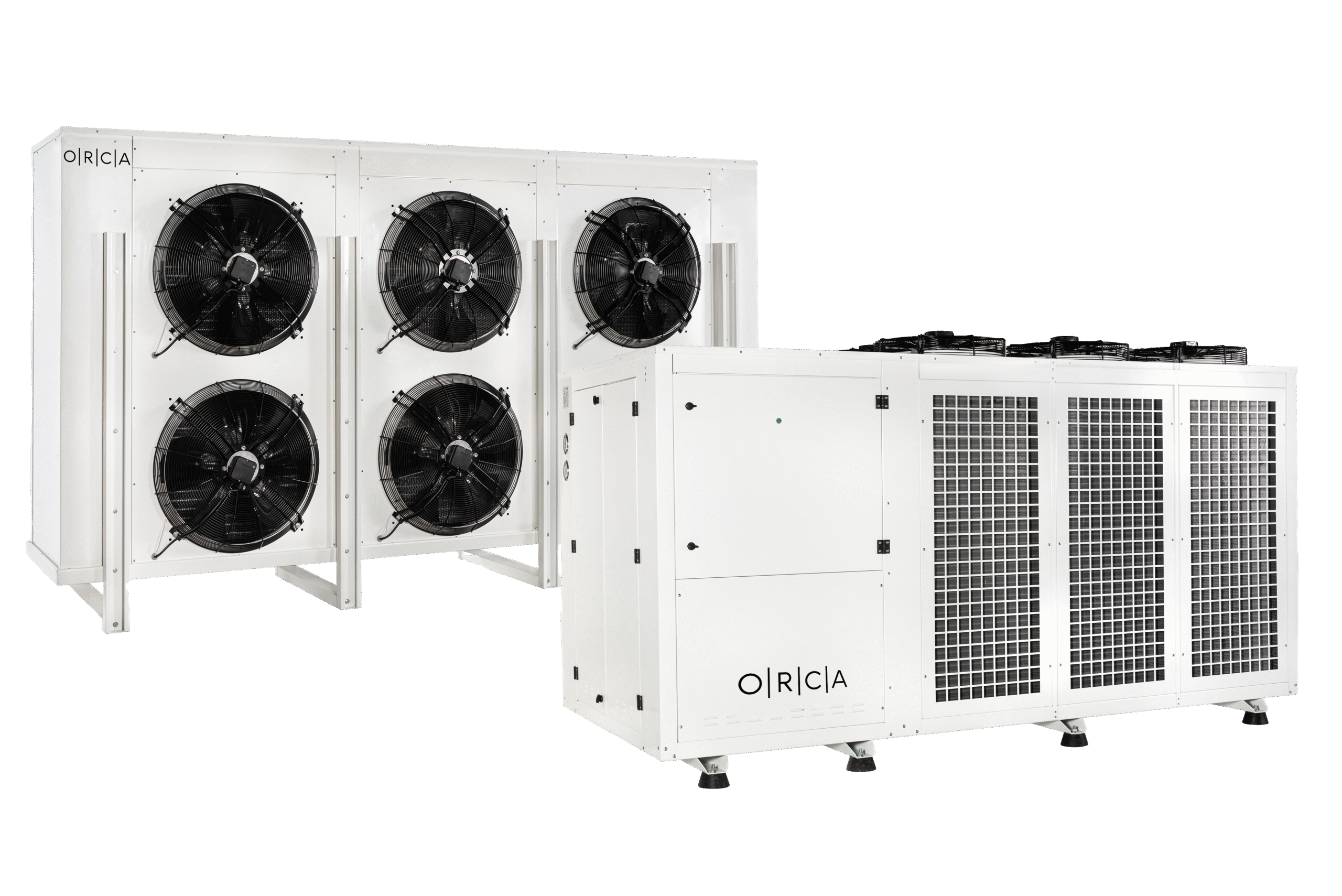

Orca Blast Freezer

Blast Freezer

Central Refrigeration Systems Orca

Monoblock Refrigeration Systems Orca

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

In order to preserve the products for long term period, they should be frost until the core temperature reaches -18°C in point of the food safety.

Environmentally Friendly

Certified Products

Energy Saving

Category: Refrigeration Systems Tags: Blast, Freezer, Price, Units

General Specifications

Blast Freezer ;

It is manufactured with semi-hermetic or screw type compressor and air cooled condenser.
It has remote control panel.
It has robust housing according to ambient conditions.
It is delivered with positive pressure by pumping nitrogen to outside unit.
All equipments are delivered together with control instruments as being ready to assembly
It has electrostatic painted galvanized steel cabinet.
It produces with high efficiency evaporator design according to unit capacity.
It can be manufactured with ceiling type or ground type evaporator design.

Technical Specifications

Blast Freezer ;

Equipments:

* It can differ according to unit model

Phase protection relay(High/Low)
Thermal / Magnetic circuit breaker
Contactor (in three-phase models)
Crankcase heater
Copper tube aluminium fin condenser
Liquid receiver
Dryer
Sight glass
Liquid flow control solenoid
Service / Maintenance valve (on the liquid line)
Pressure switch(Low/ High)
Gas charge valve
Check valve
Oil filter
Oil separator
Oil tank
Oil regulator
Sound Insulation
Electronic fan speed controller (in frost series)

Blast Freezer Units ;

Semi Hermetic R404A ( Suitable for working with R448A, R449A and R452A. )

(Evaporating Temperature -40 °C, Condensation Temperature +40 °C)

TYPE	WATT Q	HP P	KW TP	C.O.P	COMP. TYPE	CAPACITY kg/24h	FLOOR TYPE EVAP.	CEILING TYPE EVAP.
OR/FS-450 SZ	4.960	5,31	3,96	1,25	S4T-5.2Y BITZER	750	ORBF 50.21.12	ORBF-T 63.12.12
OR/FS-500 SZ	7.060	7,58	5,65	1,25	S4N-8.2Y BITZER	1.000	ORBF 50.22.12	ORBF-T 63.12.12
OR/FS-550 SZ	11.330	11,39	8,49	1,33	S4G-12.2Y	1.500	ORBF 50.23.12	ORBF-T 63.21.12
OR/FS-665 SZ	16.100	15,96	11,90	1,35	S6J-16.2Y BITZER	2.500	ORBF 63.22.12	ORBF-T 63.23.12
OR/FS-899 S	25.300	25,43	18,96	1,33	S6F-30.2Y BITZER	4.000	ORBF 63.41.12	ORBF-T 63.33.12
OR/FS-1860 SZ	25.500	29,77	22,20	1,15	HGZX 7/1860-4	4.000	ORBF 63.41.12	ORBF-T 63.33.12
OR/FS-2110 SZ	29.000	33,93	25,30	1,15	HGZX 7/2110-4	5.500	ORBF 63.41.12 O6	ORBF-T 63.33.12
OR/FS-550 SZ	13.280	13,53	10,09	1,32	2S-H1500 DORIN	1.500	ORBF 63.21.12	ORBF-T 63.22.12
OR/FS-675 SZ	18.100	18,30	13,65	1,33	2S-H2000 DORIN	3.000	ORBF 63.22.12	ORBF-T 63.23.12
OR/FS-785 SZ	20.110	20,75	15,47	1,30	2S-H2500 DORIN	3.500	ORBF 50.43.12	ORBF-T 63.32.12
OR/FS-899 SZ	23.930	24,63	18,37	1,30	2S-H3000 DORIN	4.000	ORBF 63.41.12	ORBF-T 63.33.12
OR/FS-2110 SZ	28.000	29,33	21,87	1,28	2S-H4000 DORIN	5.500	ORBF 63.41.12 O6	ORBF-T 63.33.12
OR/FS-5000 SZ	31.290	32,94	24,56	1,27	2S-H5000 DORIN	6.000	ORBF 63.41.12 O6	ORBF-T 63.33.12
OR/FS-6000 SZ	37.290	39,25	29,27	1,27	2S-H6000 DORIN	7.000	ORBF 63.42.12	ORBF-T 63.43.12
OR/FS-6500 SZ	40.950	43,11	32,15	1,27	2S-H6500 DORIN	7.500	ORBF 63.42.12	ORBF-T 63.43.12
