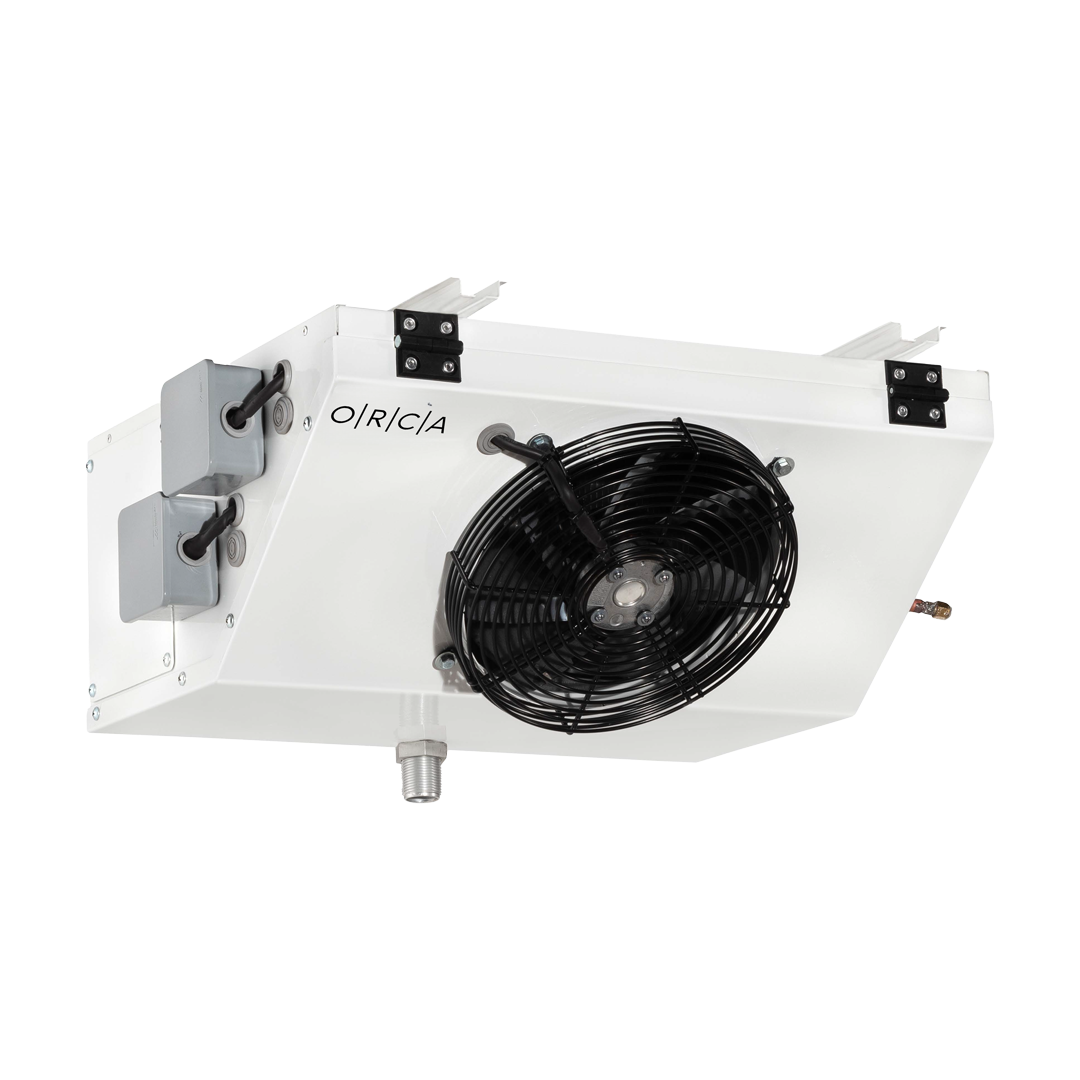

Slim Evaporators

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

Our slim evaporators which are capable to provide small and middle ranges of cooling capacities are able to respond the demands of commercial refrigerations.

Environmentally Friendly

Certified Products

Energy Saving

Orca Catalogues

General Specifications

Slim Evaporators ;

They contain a wide capacity range from 2,4 kW to 13 kW. (These capacity ranges are given for R404A refrigerant type.)

  • High Efficient Aluminium Fins
  • 4-6-8mm fin spacings
  • The copper tubes in ½’’ in diameters
  • Working capability with 404A, R 507A ve R 134A gases
  • High pressured test in 35 bar
  • High operating pressure till to 20 bar
  • Sending by positive pressure pressing with nitrogen
They might be covered optionally with epoxy cover aluminium fin.

Technical Specifications

Slim Evaporators ;

Characteristics Of Casing:

Optionally, manufactured with stainless steel casing.

  • Hot-dip galvanized sheet
  • Corrosive and permanent electrostatic powder paint (RAL 7047)
  • Hinged drain tray,
  • Easily removed side covers by loosening the connection screws
  • Ceiling mounting brackets

Characteristics Of Heaters:

E1 type resistance heaters are used for the range of 0ºC and +5ºC. Resistance heaters are only mounted on the body of the cooling coil.
E2 Resistance heaters can be used for the degrees below 0. Resistance heaters are mounted on the body of the cooling coil and drain pan.

Optionally, water defrost (WD) can be supplied.

  • E1: Coil Electrical Defrost Only
  • E2: Coil + drain tray electrical defrost

Characteristics Of Fans:

Optionally fans can be equipped with three phase motors

  • Energy-efficient and silent running fans
  • The fan motors are equipped with insulation class B or F, protection class IP44 or IP54


Fan Diameter (mm)



Fan Speed (fs/min)



Phase / Voltage (V) / Frequency (Hz)



Recommended Max. Operating Temperature (°C)

300 1320 1 / 230 / 50 -25 / +60
350 1340 1 / 230 / 50 -25 / +65
400 1380 1 / 230 / 50 -25 / +40
