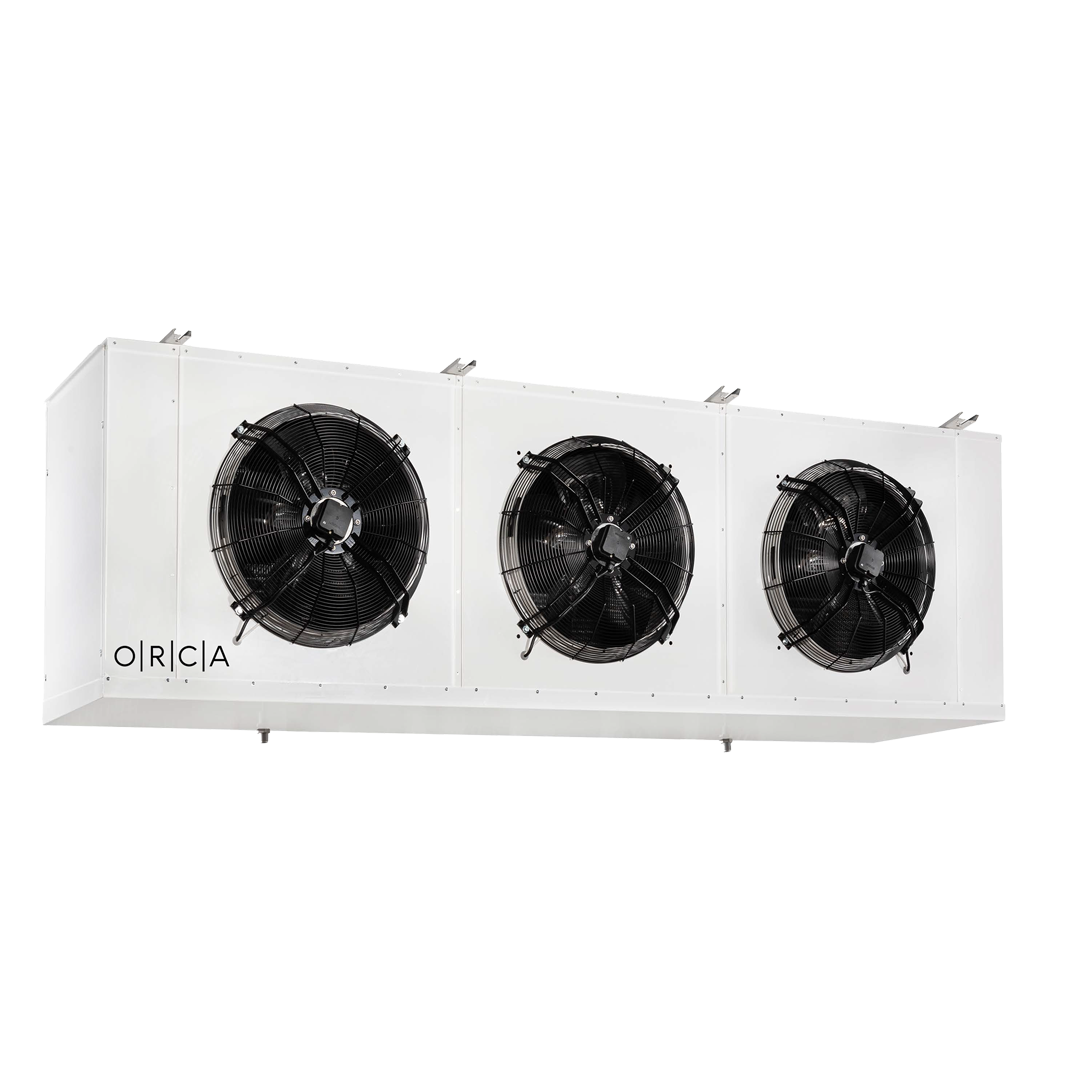

Standard Glycol Evaporators

Water / Glycol evaporators are suitable room coolers which can be applied to commercial and industrial cold rooms and consist a wide capacity ranges between 3,9kW/123,8kW.

Environmentally Friendly

Certified Products

Energy Saving

Orca Catalogues

General Specifications

Glycol Evaporators ;

They contain a wide capacity range from 3,9kW/123,8kW. (These capacity ranges are given for at %25 ethylene glycol SC10 and %35 ethylene glycol SC11.)

  • High efficient aluminium fins
  • 4-6-8 mm fin spacings
  • The copper tubes in ½’’ – 5/8’’ in diameters
  • Working capability with glycol-water mixture
  • High pressured test in 35 bar
They might be covered optionally with epoxy cover aluminium fin.

Technical Specifications

Glycol Evaporators ;

Characteristics Of Casing:

Optionally, manufactured with stainless casing

  • Hot-dip galvanized sheet
  • Anti-rust and permanent electrostatic powder paint (RAL 7047)
  • Hinged drain tray
  • Easily removed side covers by loosening the connection screw
  • Ceiling mounting brackets

Characteristics Of Heaters:

E1 type heating resistor is used for 0°C and +5°C room temperature range. The resistors are only mounted on the cooling coil.
E2 type heating resistor is used for lower than 0°C room temperature. The resistors are mounted on the coil and on the drain tray.

*Optional water defrost (WD) is available.

  • E1: Coil electrical defrost only
  • E2: Coil + drain tray electrical defrost

Characteristics Of Fans:

Optionally fans can be equipped with three phase motors

  • Energy-efficient and silent running fans
  • The fan motors are equipped with insulation class B or F, protection class IP44 or IP54 the electrical


Fan Diameter (mm)



Fan Speed (fs/min)



Phase / Voltage (V) / Frequency (Hz)



Recommended Max. Operating Temperature (°C)

400 1380 1 / 230 / 50 -25 / +40
450 1345 1 / 230 / 50 -25 / +60
500 1270 1 / 230 / 50 -40 / +65
630 860 1 / 230 / 50 -40 / +55
